 Posted: Thu Jul 26, 2012 9:34 am Post subject: Märklin 4097/5 |
 |
|

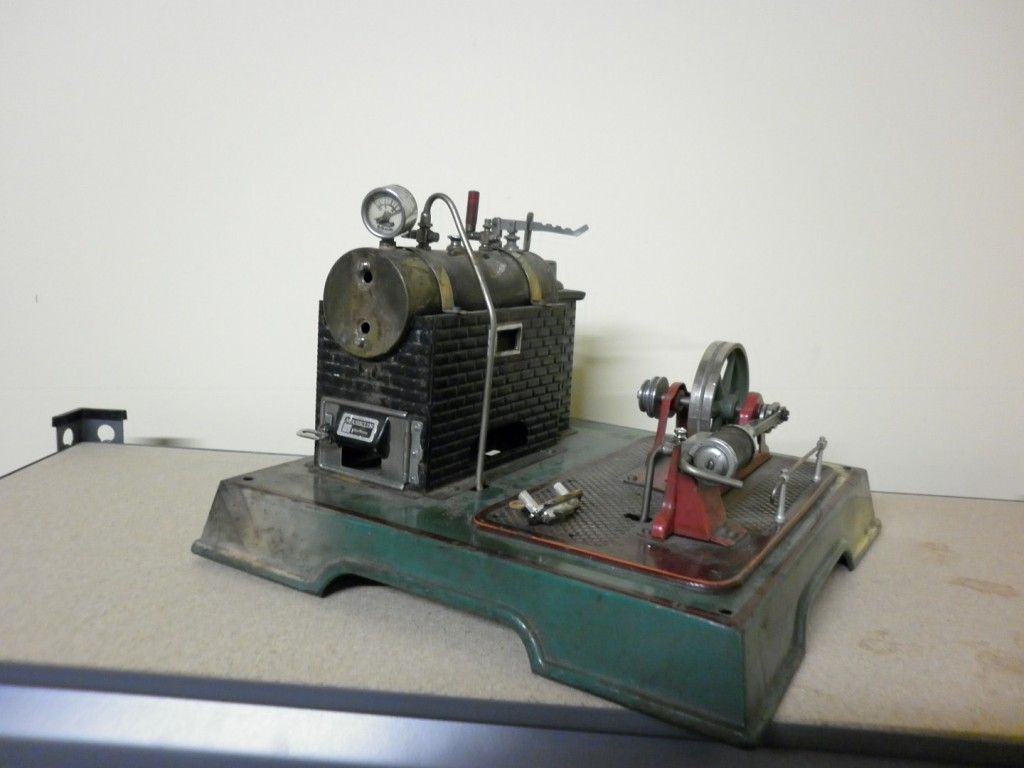

This arrived today, I'm very impressed by it.
It's quite dirty, and missing few pieces in places.
The plan is too try and source as many original parts as possible.
No repaint, except maybe the firebox.
The rest of paintwork is quite nice actually, which I'm sure it will benefit from a clean first then maybe theres something I can do too restore some shine. Any idea's much welcomed.
_________________
http://www.youtube.com/user/SarfrazDampf
Regards,
Abdul |
|
| Back to top |
|
 |
MrDuck
Steam God!
Joined: 05 Mar 2010
Posts: 20318
Location: Sweden, Uppsala
|
| Posted: Thu Jul 26, 2012 9:42 am Post subject: |
|
|
They seem to be lacquered to a shine so where there is lacquer left it will just be a matter of wiping down.
Do you know the burner or do you need a pic of it?
_________________
Et in Arcadia Ego |
|
| Back to top |
|
|
Jeffry
Junior Member
Joined: 21 Jun 2012
Posts: 358
Location: Dordrecht the Netherlands
|
| Posted: Thu Jul 26, 2012 11:18 am Post subject: |
|
|
This is a restoration I like.
Good luck with finding the missing parts. |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
| Posted: Thu Jul 26, 2012 11:44 am Post subject: |
|
|
| MrDuck wrote: | They seem to be lacquered to a shine so where there is lacquer left it will just be a matter of wiping down.
Do you know the burner or do you need a pic of it? |
Didn't come with a burner I'm afraid.
_________________
http://www.youtube.com/user/SarfrazDampf
Regards,
Abdul |
|
| Back to top |
|
|
MrDuck
Steam God!
Joined: 05 Mar 2010
Posts: 20318
Location: Sweden, Uppsala
|
| Posted: Thu Jul 26, 2012 12:14 pm Post subject: |
|
|
This the one you want;
_________________
Et in Arcadia Ego |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
|
| Back to top |
|
|
kevininasia
Steam Legend!!
Joined: 26 Jan 2009
Posts: 3297
Location: Singapore
|
| Posted: Thu Jul 26, 2012 2:44 pm Post subject: |
|
|
That's a nice project for you Abdul. Needs a bit of work, but nothing really serious. Good luck with the restoration.
If you can take some close-up photos of the sight glass assembly (front and back) and where it attaches to the boiler, I may be able to help you.
_________________
Regards,
Kevin
We live in a wonderful world that is full of beauty, charm and adventure. There is no end to the adventures that we can have if only we seek them with our eyes open.
Jawaharlal Nehru |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
|
| Back to top |
|
|
MrDuck
Steam God!
Joined: 05 Mar 2010
Posts: 20318
Location: Sweden, Uppsala
|
| Posted: Sun Jul 29, 2012 7:27 am Post subject: |
|
|
That will do
It had the same whistle but with bells sitting in the grooves. However you can either add the bells
_________________
Et in Arcadia Ego |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
| Posted: Sun Jul 29, 2012 11:12 am Post subject: |
|
|
Been busy this weekend.
The firebox was quite rusty on the inside & bit on the outside. That has now been sorted. It is now rust free & repainted. The cylinder cover also got a repaint.
The base responded well too a good clean & it's now got some shine back.
Back together now.
_________________
http://www.youtube.com/user/SarfrazDampf
Regards,
Abdul |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
| Posted: Sun Jul 29, 2012 11:22 am Post subject: |
|
|
The next thing I attempted too fix is the pressure gauge.
Well I don't think that's going too happen, I opened it up, it's a bit far gone.
The main copper tube part is finished, it's snapped.
I can tell someone has been here before me.
I'm on the search for a new one. I've got one coming, a Wilesco version, however I might use that on my Bing, not sure yet.
I'll still have too track one down, anybody know any suppliers?
_________________
http://www.youtube.com/user/SarfrazDampf
Regards,
Abdul
Last edited by sarfraz on Sun Jul 29, 2012 1:15 pm; edited 1 time in total |
|
| Back to top |
|
|
MrDuck
Steam God!
Joined: 05 Mar 2010
Posts: 20318
Location: Sweden, Uppsala
|
| Posted: Sun Jul 29, 2012 11:30 am Post subject: |
|
|
Keep the glass, casing and stand. There are modern gauges in about same size so maybe the working parts can be transfered?
_________________
Et in Arcadia Ego |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
| Posted: Sun Jul 29, 2012 12:01 pm Post subject: |
|
|
| MrDuck wrote: | | Keep the glass, casing and stand. There are modern gauges in about same size so maybe the working parts can be transfered? |
It could work.
_________________
http://www.youtube.com/user/SarfrazDampf
Regards,
Abdul |
|
| Back to top |
|
|
kevininasia
Steam Legend!!
Joined: 26 Jan 2009
Posts: 3297
Location: Singapore
|
| Posted: Sun Jul 29, 2012 2:43 pm Post subject: |
|
|
Nice job with the cylinder cover. It looks good.
_________________
Regards,
Kevin
We live in a wonderful world that is full of beauty, charm and adventure. There is no end to the adventures that we can have if only we seek them with our eyes open.
Jawaharlal Nehru |
|
| Back to top |
|
|
sarfraz
Steam fanatic
Joined: 17 Apr 2011
Posts: 1221
Location: North Coast NSW
|
| Posted: Mon Jul 30, 2012 7:51 am Post subject: |
|
|
In a spot of bother now. Sight glass fitted, but went too put some water in, it came straight back out.
When the engine arrived, a broken half an insert fell out of the boiler.
I didn't think much of it till now. However it turns out it's half a sight glass thread. These threads are sealed on one end, stopping any water coming through. The top one is fine, however the bottom is a different story.
Will post a pic up soon, so you get what I'm on about.
Needless too say, I'm not very happy about it.
On a good note, the safety valve weight arrived today.
_________________
http://www.youtube.com/user/SarfrazDampf
Regards,
Abdul |
|
