The Lathe, Mill & General Tool Talk Thread
Page 1, 2, 3 ... 36, 37, 38  Next

Post new topic   Reply to topic    The Unofficial Mamod and Other Steam Forum Forum Index -> Technical tips, Details, Home Builds and Help Me!!
View previous topic :: View next topic
Author Message
Jim


Honorary Life Member


Joined: 18 Nov 2013
Posts: 13979

FLAGS
Location: South Coast of New South Wales Australia

PostPosted: Sat Oct 11, 2014 5:30 am    Post subject: The Lathe, Mill & General Tool Talk Thread Reply with quote

I've spoken to lots of members in PM's about lathes, mills and tools since I joined. A thread about tools both big and large that we use in our steam addiction could be fun and educational. I know that I have been given some great hints and help from generous members.

Lets see if this thread takes off, hopefully its popular! (If it doesn't I'm happy to talk to myself and post pics to myself )

To start off -

I made a saddle stop for my lathe and out of a block of aluminium and a stainless steel rod and brass knobs. It's fantastic and has been really useful. The last week I took it a bit further and made it so that I could leave the saddle stop in place and change the stop position by being able to wind in and out the brass cylinder that you can see below that I knurled. The smaller brass knurled cylinder to the left is a lock. It's so simple to change the stop now as I can unlock either the main saddle lock for a larger positional change, or just unlock the brass cylinder lock and spin the knurled saddle lock either in or out. Great for taking multiple cuts to the same shoulder etc





_________________
Cheers,
Jim

My YouTube Channel with now 257 Steam Videos of my engines for you to browse and watch
https://www.youtube.com/user/Blue123Heeler/feed?activity_view=3

Back to top
View user's profile Send private message Send e-mail Visit poster's website
Jim


Honorary Life Member


Joined: 18 Nov 2013
Posts: 13979

FLAGS
Location: South Coast of New South Wales Australia

PostPosted: Sat Oct 11, 2014 5:35 am    Post subject: Reply with quote

I use my steady fairly occasionally (much more than my follow rest) and did this easy mod that's worked really really well for me. The ball bearing races have made such a difference -











_________________
Cheers,
Jim

My YouTube Channel with now 257 Steam Videos of my engines for you to browse and watch
https://www.youtube.com/user/Blue123Heeler/feed?activity_view=3

Back to top
View user's profile Send private message Send e-mail Visit poster's website
Jim


Honorary Life Member


Joined: 18 Nov 2013
Posts: 13979

FLAGS
Location: South Coast of New South Wales Australia

PostPosted: Sat Oct 11, 2014 5:37 am    Post subject: Reply with quote

Something that I learnt from Kevin (and I wished I'd known it years ago) was the simple trick of using an ordinary needle in my milling machine to centre perfectly something that's needs drilling accurately. So simple yet so utterly brilliant!
_________________
Cheers,
Jim

My YouTube Channel with now 257 Steam Videos of my engines for you to browse and watch
https://www.youtube.com/user/Blue123Heeler/feed?activity_view=3

Back to top
View user's profile Send private message Send e-mail Visit poster's website
Jim


Honorary Life Member


Joined: 18 Nov 2013
Posts: 13979

FLAGS
Location: South Coast of New South Wales Australia

PostPosted: Sat Oct 11, 2014 5:57 am    Post subject: Reply with quote

I know a lot of people know about and use Autosol, but did you know that they make a polish particulary for chrome? (also great for buffing plastic).

This is awesome stuff for Jensens and Wilescos and gives the chrome/nickel a mirror like finish -



_________________
Cheers,
Jim

My YouTube Channel with now 257 Steam Videos of my engines for you to browse and watch
https://www.youtube.com/user/Blue123Heeler/feed?activity_view=3

Back to top
View user's profile Send private message Send e-mail Visit poster's website
Jim


Honorary Life Member


Joined: 18 Nov 2013
Posts: 13979

FLAGS
Location: South Coast of New South Wales Australia

PostPosted: Sat Oct 11, 2014 6:04 am    Post subject: Reply with quote

Are you into Dremel (or Dremel like tools) ? Dremel have introduced an EZ Lock system that is bloody terrific. So many accessories now come that are made for the EZ Lock mandrel system. It takes just seconds now to change from one accessory head to another. If your a frequent Dremel user (and aren't all steamers!!!!) next time your shopping for Dremel heads, check out the EZ Lock system.

http://www.dremel.com/en-au/Acces...ages/ProductDetail.aspx?pid=EZ406


_________________
Cheers,
Jim

My YouTube Channel with now 257 Steam Videos of my engines for you to browse and watch
https://www.youtube.com/user/Blue123Heeler/feed?activity_view=3

Back to top
View user's profile Send private message Send e-mail Visit poster's website
davidcurtis021


Honorary Life Member


Joined: 24 Mar 2009
Posts: 5116

FLAGS

PostPosted: Sat Oct 11, 2014 6:25 am    Post subject: Reply with quote

Jim wrote:
Something that I learnt from Kevin (and I wished I'd known it years ago) was the simple trick of using an ordinary needle in my milling machine to centre perfectly something that's needs drilling accurately. So simple yet so utterly brilliant!


good idea
_________________
“Nullius in verba”
Back to top
View user's profile Send private message Visit poster's website
#1steam


Guest





FLAGS

PostPosted: Sat Oct 11, 2014 6:29 am    Post subject: Reply with quote

Jim wrote:
Something that I learnt from Kevin (and I wished I'd known it years ago) was the simple trick of using an ordinary needle in my milling machine to centre perfectly something that's needs drilling accurately. So simple yet so utterly brilliant!


I think it's called sticky pin, I've read it in a book somewhere but can't quite figure out how it works could you post a photo of you using it? (maybe if I read it again it would make sense..... that is if we're talking about the same thing )

This will hopefully become a good resource for machine tips and mods

Nicolas
Back to top
kevin


Steam Supreme Being


Joined: 14 May 2012
Posts: 10824

FLAGS
Location: Portsmouth

PostPosted: Sat Oct 11, 2014 7:10 am    Post subject: Reply with quote

Just my type of thread.

Love the stop you have made but one suggestion put a steel dome on the end that way swarf cant get caught in the gap and change the position.

Both my lathes are gap heads so there is not a lot of room for this type of stop and being to lazy to make one I tend to use a toolmakers clamp like this:

 photo IMG_3103.jpg

A sticky pin is the same principal as a wobbler, it just gives you the ability to centre a pin in the chuck by using the centrafugal force. I never got on with them and find it unnecessary but I will dig one out later and take a photo to show how it works.

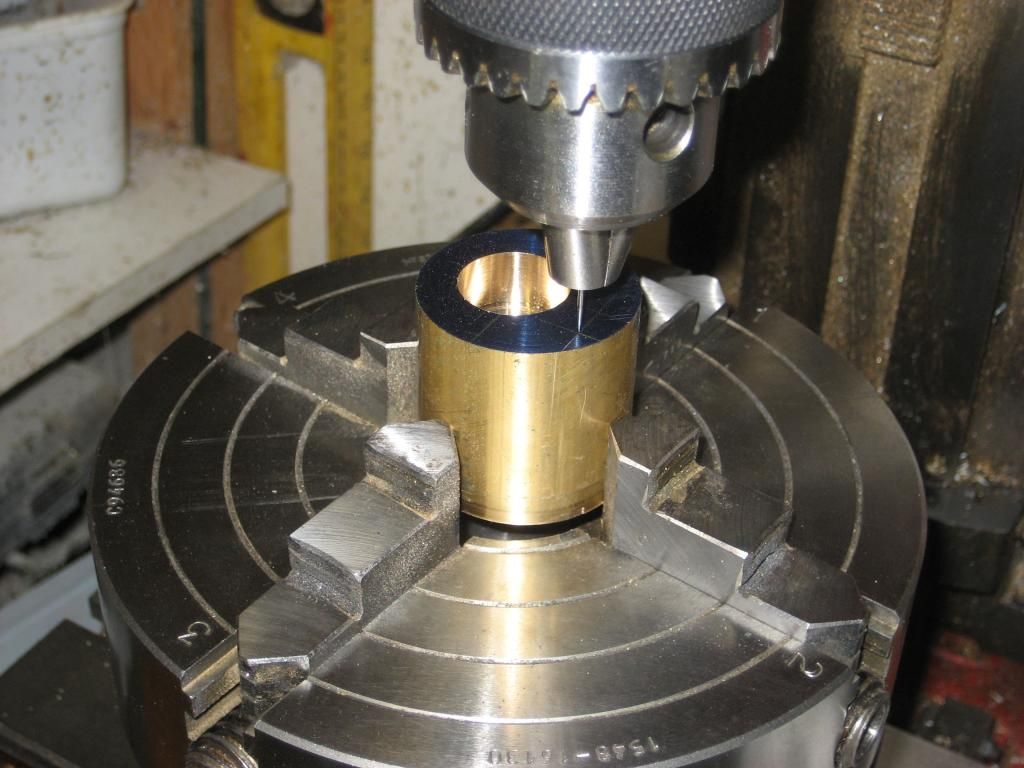

What I use is a 1mm diameter sewing needle and I grind the eye off it sits in the chuck nice and straight and once I have it aligned I spin it up and check for any wobble.

 photo IMG_3069.jpg
_________________
Im not a megalomaniac, I just want to rule the world !

www.ITA-SHOP.co.uk
Back to top
View user's profile Send private message Visit poster's website
kevin


Steam Supreme Being


Joined: 14 May 2012
Posts: 10824

FLAGS
Location: Portsmouth

PostPosted: Sat Oct 11, 2014 7:22 am    Post subject: Reply with quote

here is a sticky pin in action

http://www.projectsinmetal.com/forum/shop-tips-and-tricks/sticky-pin/
_________________
Im not a megalomaniac, I just want to rule the world !

www.ITA-SHOP.co.uk
Back to top
View user's profile Send private message Visit poster's website
kevin


Steam Supreme Being


Joined: 14 May 2012
Posts: 10824

FLAGS
Location: Portsmouth

PostPosted: Sat Oct 11, 2014 7:28 am    Post subject: Reply with quote

Turning to the edge of a thin disk, the bits of brass protect the jaws of the chuck and allow the whole disk to be turned

 photo IMG_3142.jpg
_________________
Im not a megalomaniac, I just want to rule the world !

www.ITA-SHOP.co.uk
Back to top
View user's profile Send private message Visit poster's website
kevin


Steam Supreme Being


Joined: 14 May 2012
Posts: 10824

FLAGS
Location: Portsmouth

PostPosted: Sat Oct 11, 2014 7:30 am    Post subject: Reply with quote

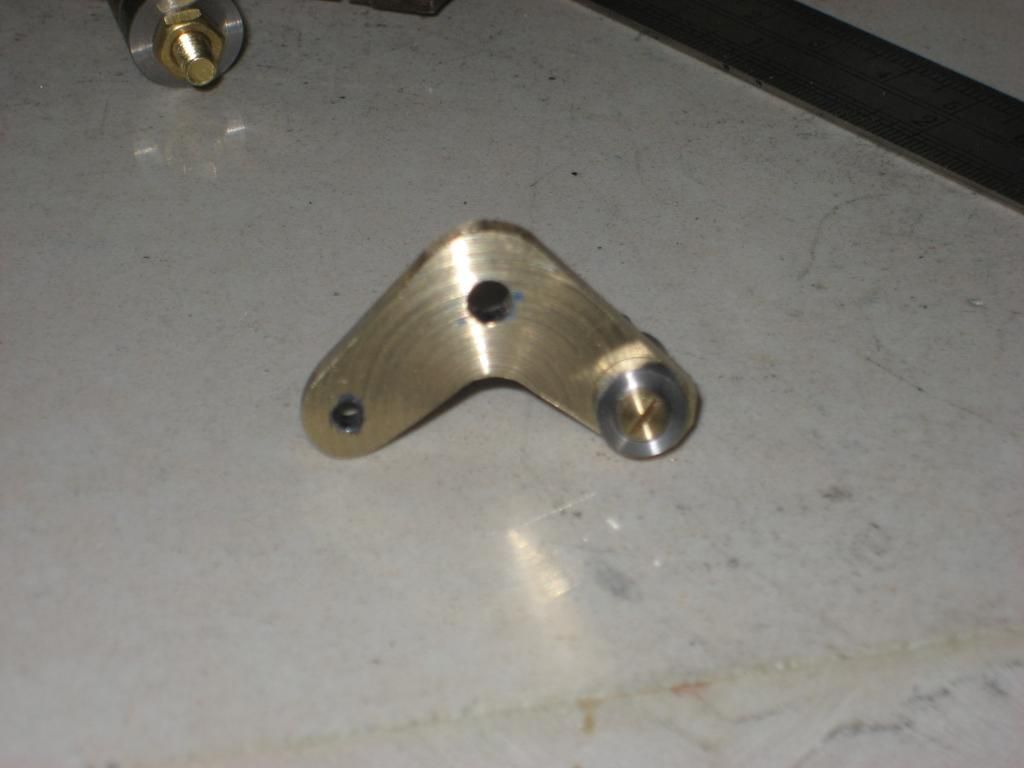

make simple steel "buttons" to use as file guides on curved surfaces

 photo IMG_3117.jpg

 photo IMG_3152.jpg
_________________
Im not a megalomaniac, I just want to rule the world !

www.ITA-SHOP.co.uk
Back to top
View user's profile Send private message Visit poster's website
kevin


Steam Supreme Being


Joined: 14 May 2012
Posts: 10824

FLAGS
Location: Portsmouth

PostPosted: Sat Oct 11, 2014 7:34 am    Post subject: Reply with quote

Being a poor pensioner I cant afford parallels and slip gauges but HSS tool steel is accurate. Also ball bearing the outer races are accurate and good for spacing work out from the lathe chuck

Here I am setting a slitting saw 1/8 inch below the surface
 photo IMG_3145.jpg
_________________
Im not a megalomaniac, I just want to rule the world !

www.ITA-SHOP.co.uk
Back to top
View user's profile Send private message Visit poster's website
Stilldrillin


Honorary Life Member


Joined: 06 Feb 2007
Posts: 6566

FLAGS
Location: Staveley, Derbyshire. UK

PostPosted: Sat Oct 11, 2014 7:47 am    Post subject: Reply with quote

Never used a sticky pin, to locate a centre point. Always used a rigid pin/ needle.......

But, I spent a working lifetime, using one to locate the centre of components.

Stick it onto any hand rotatable spindle part........













And when you`ve done with it, for now.......




It sticks onto the machine, so it doesn`t get lost!
_________________
David...... "Good `ere, innit!"

Life happens, when you connect with people.
Not, constantly working to be better, or have more......
Back to top
View user's profile Send private message
tinkerer58


Steam Legend!!


Joined: 03 Jan 2014
Posts: 4394

FLAGS
Location: Sydney

PostPosted: Sat Oct 11, 2014 10:39 am    Post subject: Reply with quote

Great thread, maybe this should be a sticky so it can always be added to, good one Jim.
_________________
He who has never stuffed anything up has never done anything.   --Theo
Back to top
View user's profile Send private message
St. Paul steam


Steam Legend!!


Joined: 19 Jul 2011
Posts: 6278

FLAGS
Location: St. Paul In. USA

PostPosted: Sat Oct 11, 2014 11:39 am    Post subject: Reply with quote

Love that centering pin idea, could have used it yesterday myself....good thread.
_________________
 St. Paul Steam...
                Bruce
Back to top
View user's profile Send private message Send e-mail Visit poster's website
