Linemar Atomic Reactor
Page Previous  1, 2, 3, 4  Next

Post new topic   Reply to topic    The Unofficial Mamod and Other Steam Forum Forum Index -> Technical tips, Details, Home Builds and Help Me!!
View previous topic :: View next topic
Author Message
airspyder


Steam Legend!!


Joined: 12 Jan 2011
Posts: 2447

FLAGS
Location: Minnesota

PostPosted: Mon Apr 17, 2017 3:22 pm    Post subject: Reply with quote

Could a copper boiler be fitted inside the steel one, using it as a casing?


I suppose it could be done that way but you would end up with an even smaller boiler than the original.
The John Ericsson engine by Alga hides a smaller boiler under it's insulated dome.
I think Geoff had the right idea by making a new copper boiler.
That might be the way to go.
Back to top
View user's profile Send private message
ozsteamdemon


Honorary Life Member


Joined: 13 Aug 2008
Posts: 10455

FLAGS
Location: Victoria Australia

PostPosted: Tue Apr 18, 2017 12:17 am    Post subject: Reply with quote

Bill, sometimes you gotta bite the bullet and go the whole hog.
_________________
 Demon Industries - Workshops Division

Now taking orders for all your steam accessory needs.




Back to top
View user's profile Send private message Send e-mail
airspyder


Steam Legend!!


Joined: 12 Jan 2011
Posts: 2447

FLAGS
Location: Minnesota

PostPosted: Wed Apr 19, 2017 7:26 pm    Post subject: Reply with quote

I'm considering it as a future project.
Back to top
View user's profile Send private message
Les


Honorary Life Member


Joined: 03 Nov 2007
Posts: 51061

FLAGS
Location: Bournemouth, Dorset, England.

PostPosted: Fri Apr 21, 2017 5:42 am    Post subject: Reply with quote

I would make a new boiler insert and try to keep the original dome.
_________________
Les - Don't panic - it's your round next.

http://www.bucketofsteam.co.uk/
Back to top
View user's profile Send private message Visit poster's website
ozsteamdemon


Honorary Life Member


Joined: 13 Aug 2008
Posts: 10455

FLAGS
Location: Victoria Australia

PostPosted: Fri Apr 21, 2017 10:36 am    Post subject: Reply with quote

Making a new boiler tested my skills and patience to the limit, spent way too much time on it.
The end result was quite pleasing, and when i saw my engine in steam, all those negative thoughts and frustrations disappeared like a puff of steam.



Once my boiler was made, i sent it off to the nickel platers to have it professionally done.

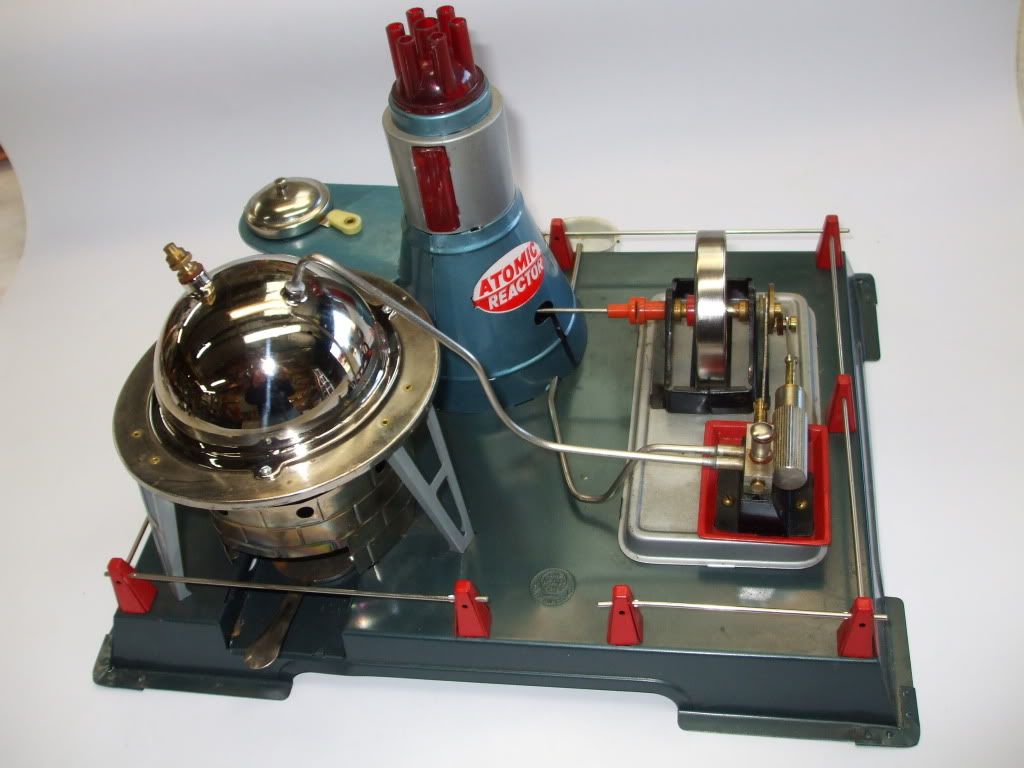

Before and after shots



_________________
 Demon Industries - Workshops Division

Now taking orders for all your steam accessory needs.




Back to top
View user's profile Send private message Send e-mail
Stoker


Honorary Life Member


Joined: 23 Feb 2010
Posts: 11475

FLAGS
Location: Eastern Sierra

PostPosted: Fri Apr 21, 2017 3:10 pm    Post subject: Reply with quote

That might just be the only "Long Life" Linemar out there!
_________________
Are we having fun yet?
Yeow!
Back to top
View user's profile Send private message
Dr. Rog


Steam Supreme Being


Joined: 30 Dec 2008
Posts: 9572

FLAGS
Location: Kingsclere UK

PostPosted: Fri Apr 21, 2017 4:25 pm    Post subject: Reply with quote

 great work, Oz, have you quoted for a second,
_________________
Cheers
Rog.

https://www.youtube.com/user/DrRogB/videos

New positive motto for 2017: carpe diem
Back to top
View user's profile Send private message
airspyder


Steam Legend!!


Joined: 12 Jan 2011
Posts: 2447

FLAGS
Location: Minnesota

PostPosted: Sun Apr 23, 2017 7:29 pm    Post subject: Reply with quote

As Geoff said above, making a boiler like this can try your patience, I know exactly what he means.
As an initial experiment I tried using wood forming blocks like I would for typical end caps, and succeeded in making a couple very sturdy but rather ungainly copper ashtrays.

So, no shortcuts.

On Friday I finished building two drawing dies and punches that will be used to form the halves of the boiler.

Since I don't have a tool for turning a large radius on my lathe I had to cut that on the mill.

This is after the roughing operation.
 photo LMA 1.jpg

The completed tooling.
 photo LMA 2.jpg

A couple of copper discs.

 photo LMA 3.jpg

The discs will get annealed before the first pressing
 photo LMA 4.jpg

Note the holes through the centers of the punches, very important.
 photo LMA 5.jpg

The set up in the hydraulic press.
The top plate aligns the punch and acts as a pressure plate.
 photo LMA 6.jpg

This is a very slow process, anneal, press, anneal, flatten edge, anneal, press.....
A shot of the domed end cap coming through the bottom of the die.
 photo LMA 7.jpg

A day's work produced one each of the boiler halves.
 photo LMA 8.jpg

This morning I cleaned them up, and trimmed the ragged edge.
 photo LMA 9.jpg

Very happy with the fit.


Bill
Back to top
View user's profile Send private message
stenella


Steam fanatic


Joined: 25 Mar 2010
Posts: 1413

FLAGS

PostPosted: Sun Apr 23, 2017 9:30 pm    Post subject: Reply with quote

Sweet! keep the pictures coming, this is fascinating stuff!
Back to top
View user's profile Send private message
ozsteamdemon


Honorary Life Member


Joined: 13 Aug 2008
Posts: 10455

FLAGS
Location: Victoria Australia

PostPosted: Mon Apr 24, 2017 9:03 am    Post subject: Reply with quote

An excellent result there Bill, well done!

Even with the punch and die, i had the same difficulty and lost count of the times of annealing and trying to dress awkward crinkles out tapping with a hammer. Very frustrating.

One thing is for sure , making new boilers for Linemars aint no get rich quick scheme.
_________________
 Demon Industries - Workshops Division

Now taking orders for all your steam accessory needs.




Back to top
View user's profile Send private message Send e-mail
MrMamod


Honorary Life Member


Joined: 03 Jan 2010
Posts: 30181

FLAGS
Location: Hereford

PostPosted: Mon Apr 24, 2017 11:53 am    Post subject: Reply with quote

Bill and Geoff your work always amazes me and the finished products are so much works of art
_________________
Finder of odd Things


Last edited by MrMamod on Mon Apr 24, 2017 7:04 pm; edited 1 time in total
Back to top
View user's profile Send private message
Dr. Rog


Steam Supreme Being


Joined: 30 Dec 2008
Posts: 9572

FLAGS
Location: Kingsclere UK

PostPosted: Mon Apr 24, 2017 5:18 pm    Post subject: Reply with quote

 fantastic result - you should do a batch.
_________________
Cheers
Rog.

https://www.youtube.com/user/DrRogB/videos

New positive motto for 2017: carpe diem
Back to top
View user's profile Send private message
MrDuck


Steam God!


Joined: 05 Mar 2010
Posts: 40349

FLAGS
Location: Sweden, Uppsala

PostPosted: Tue Apr 25, 2017 8:06 am    Post subject: Reply with quote

Impressive results. Renews the plant completely
_________________
Et in Arcadia Ego
Back to top
View user's profile Send private message Send e-mail MSN Messenger
Les


Honorary Life Member


Joined: 03 Nov 2007
Posts: 51061

FLAGS
Location: Bournemouth, Dorset, England.

PostPosted: Tue Apr 25, 2017 8:16 am    Post subject: Reply with quote

That's incredible, I am sure if you put a few replica boilers on Ebay they would get snapped up at any price.
_________________
Les - Don't panic - it's your round next.

http://www.bucketofsteam.co.uk/
Back to top
View user's profile Send private message Visit poster's website
airspyder


Steam Legend!!


Joined: 12 Jan 2011
Posts: 2447

FLAGS
Location: Minnesota

PostPosted: Tue Apr 25, 2017 5:21 pm    Post subject: Reply with quote

Thank you all for the fine comments, they are always appreciated.
Back to top
