| View previous topic :: View next topic |
| Author |
Message |
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
 Posted: Tue Mar 20, 2012 3:34 pm Post subject: |
 |
|
Thanks Daniel!!
All this talk of beer is killing me ..I gave up alcohol for Lent...Come on Easter Bunny/!
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/ |
|
| Back to top |
|
 |
shaygetz
Full member
Joined: 19 Jan 2008
Posts: 826
Location: USA
|
| Posted: Tue Mar 20, 2012 3:55 pm Post subject: |
|
|
| mogogear wrote: | and my new features:
 Cheers |
A hot tub?
A real peach...just now found this thread, very, very nicely done.
_________________
Presume not upon God’s patience.
---His Eminence the Very Lord Br'er Shaygetz the Ebullient of Hopton Goosnarg
 |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Tue Mar 20, 2012 4:39 pm Post subject: |
|
|
 , No Bob a tow line bin!! But it also could pass for a miniature dance floor too!It is a peculiar feature to me as well- but it is featured in the drawings just like the queer round skylite towers fore and aft- a departure from the older more familiar type
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/ |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Wed Mar 28, 2012 6:46 am Post subject: |
|
|
A little more steam pipe work tonight..also a small super heater for the stack as steam heads towards the engine. It may seem odd to have the S Heater turned upwards- but as this boiler has a fed tube for the boiler refill circuit running right where I need to go- I went with that any extra heat was better than NO extra heat on the way to the engine. I hope that I am right.
Note - the steam lines will be lagged and should cover some of the bumps in the liens..The hardest bending to date with 2 sets of compound curves
A little frustrating
Pressure gauge in place too!!
Adios
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/
Last edited by mogogear on Wed Mar 28, 2012 4:05 pm; edited 1 time in total |
|
| Back to top |
|
|
MrDuck
Steam God!
Joined: 05 Mar 2010
Posts: 20180
Location: Sweden, Uppsala
|
| Posted: Wed Mar 28, 2012 7:30 am Post subject: |
|
|
If you're very bored with it, I can sacrifice some shelf space free of charge
_________________
Et in Arcadia Ego |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Wed Mar 28, 2012 2:45 pm Post subject: |
|
|
| MrDuck wrote: | | If you're very bored with it, I can sacrifice some shelf space free of charge |
I think with all this plumbing the Alien would be right at home around it
It looks like the lower levels of the prison in Aliens 3
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/ |
|
| Back to top |
|
|
Stoker
Steam Legend!!
Joined: 23 Feb 2010
Posts: 5522
Location: Eastern Sierra
|
| Posted: Wed Mar 28, 2012 3:21 pm Post subject: |
|
|
| mogogear wrote: | | MrDuck wrote: | | If you're very bored with it, I can sacrifice some shelf space free of charge |
I think with all this plumbing the Alien would be right at home around it
It looks like the lower levels of the prison in Aliens 3 |
I was thinking a bit on the movie "Brazil" in that regard, but your plumbing does look well thought out and efficiently routed. Nice work for sure!!!
_________________
Are we having fun yet?
Yeow! |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Wed Mar 28, 2012 3:29 pm Post subject: |
|
|
| Stoker wrote: | | mogogear wrote: | | MrDuck wrote: | | If you're very bored with it, I can sacrifice some shelf space free of charge |
I think with all this plumbing the Alien would be right at home around it
It looks like the lower levels of the prison in Aliens 3 |
I was thinking a bit on the movie "Brazil" in that regard, but your plumbing does look well thought out and efficiently routed. Nice work for sure!!! |
Brazil--One of my favorite movies of all time!!!!--love Terry's work
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/ |
|
| Back to top |
|
|
Dr. Rog
Steam Legend!!
Joined: 30 Dec 2008
Posts: 4475
Location: Kingsclere UK
|
| Posted: Wed Mar 28, 2012 9:50 pm Post subject: |
|
|
A very nice, progressive transformation
_________________
Cheers
Rog |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Wed Mar 28, 2012 10:51 pm Post subject: |
|
|
While I was lagging, coating in CA glue and then painting in high temp white the steam line --my mind wandered to "circuits" or systems represented in the boiler alone.
If the category term is incorrect- I apologize right off.
What I mean are things like:
Safety- SV
Water level monitor- site glass
Pressure regulation- attenuator
Temperature preservation- Boiler lagging insulation
Refill circuit
Steam dryer
Steam feed- Globe valve and line
Pressure monitor- pressure gauge
Exhaust handling - stack for unused burner and exhaust output
Burner circuit
This all may be painfully obvious but as I have worked through problems and layout details on each and every one of these- I had to tip my hat to how complicated this little "still mildly basic" boiler is.
I do not have electronic water level sensors, engine driven boiler feed pump nor electric motor pump, a whistle, a blown-down valve, or pump bypass circuit, nor is it a flash steam boiler with many a wonderfully complicated relationship with a high volume feed-pump. Boggles the mind when I think about it like that .
Ok back to reality. Paint is dry
Time for the SV cover and line that will be banded to the smoke stack. I prefer to see over pressure release where I can notice it ASAP and respond accordingly. It will be nothing more than a cap with a pipe that leads to the stack
Cheers
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/
Last edited by mogogear on Wed Mar 28, 2012 11:03 pm; edited 1 time in total |
|
| Back to top |
|
|
Les
Honorary Life Member
Joined: 03 Nov 2007
Posts: 43142
Location: Bournemouth, Dorset, England.
|
| Posted: Wed Mar 28, 2012 10:53 pm Post subject: |
|
|
That is looking good Greg.
_________________
Les - Don't panic - it's your round next.
http://www.bucketofsteam.co.uk/ |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Thu Mar 29, 2012 5:56 am Post subject: |
|
|

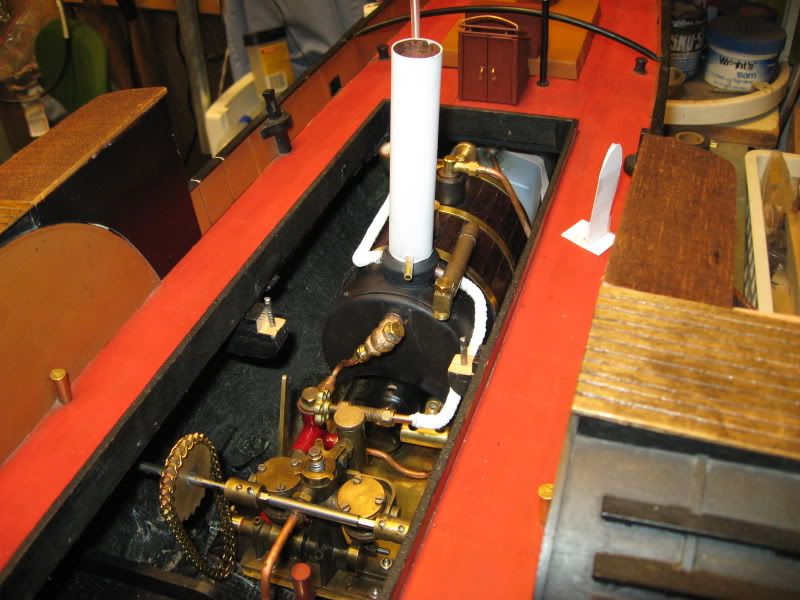

Pressure gauge location and routing reworked ( it is now visible with the superstructure in place through the rear engine grating), lagging all painted, stack repainted, a the SV blow off pipe turned on the lathe and soldered pipe in place.
Also made the last small exhaust pipe to the condenser. Only a return to the stack left to do...
Good Night Irene
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/ |
|
| Back to top |
|
|
MrDuck
Steam God!
Joined: 05 Mar 2010
Posts: 20180
Location: Sweden, Uppsala
|
| Posted: Thu Mar 29, 2012 7:01 am Post subject: |
|
|
Great to see the heart back in the body
You need some benches with knitting ladies and harassing gentlemen to compliment
_________________
Et in Arcadia Ego |
|
| Back to top |
|
|
mogogear
Honorary Life Member
Joined: 01 Feb 2008
Posts: 8195
Location: Portland Oregon
|
| Posted: Thu Mar 29, 2012 2:49 pm Post subject: |
|
|
| MrDuck wrote: | Great to see the heart back in the body
You need some benches with knitting ladies and harassing gentlemen to compliment |
Ahhh, there lies the rub dear Mr Duck...I abhor people, mannequins or dolls on my boats. Dolls and small folk kind creep me out.
My boats are destined to wander aimlessly with no crew or passengers. A Twilight Zone episode of sorts I guess
_________________
Lagniappe readily offered and accepted,
Mo (greg)
His Most Noble Lord Admiral Mo, the Apocalyptic of Old Tonbridge Wafers
http://gerddi.blogspot.com/ |
|
| Back to top |
|
|
Stoker
Steam Legend!!
Joined: 23 Feb 2010
Posts: 5522
Location: Eastern Sierra
|
| Posted: Thu Mar 29, 2012 3:45 pm Post subject: |
|
|
| mogogear wrote: | | MrDuck wrote: | Great to see the heart back in the body
You need some benches with knitting ladies and harassing gentlemen to compliment |
Ahhh, there lies the rub dear Mr Duck...I abhor people, mannequins or dolls on my boats. Dolls and small folk kind creep me out.
My boats are destined to wander aimlessly with no crew or passengers. A Twilight Zone episode of sorts I guess |
You could always rename her "Mary Celeste"
By the way, I wholeheartedly agree. Even in model railroading, I have problems trying to place people into the scene. You have a dynamic model populated by static figures ... creepy. It's just not right.
Now there have been a few situations posted on here where the man at the helm has some appropriate motion himself, and that is definitely better in my mind, but still not quite right somehow. The problem may just be with me though!?!?
_________________
Are we having fun yet?
Yeow! |
|
| Back to top |
|
|
|
)
